HVAC Duct Protective Film: Reliable Surface Protection from Manufacturing to Installation

HVAC ductwork must remain clean, intact, and presentable throughout manufacturing, transportation, storage, installation, and commissioning. Although duct panels and assembled ducts are generally manufactured from durable materials such as galvanized steel, aluminum, fiberglass, and composite boards, their surfaces can still be scratched, dented, stained, or contaminated during normal project handling. Once damage occurs, contractors may need to spend additional time cleaning, repairing, repainting, or replacing affected components. In some projects, surface contamination can also increase the risk of dust and debris entering the ventilation system before commissioning.

HVAC duct protective film is a practical temporary protection solution developed to address these problems. It uses a tough polyethylene backing film coated with a specially formulated adhesive. The film can be applied to exposed duct surfaces or used to create temporary closures over open ductwork. During the protected period, it helps resist puncture, penetration by dirt and liquids, scratches, and other forms of construction-related damage. After the ductwork is ready for final installation or system commissioning, the film can be removed efficiently without leaving adhesive residue when the product is selected and applied correctly.

For large construction projects, the value of protective film goes beyond simple surface coverage. It can reduce cleaning work, support better site organization, preserve the appearance of visible ductwork, and help contractors maintain a more controlled installation process. A well-designed HVAC duct protective film must therefore combine strong mechanical performance, reliable adhesion, clean removability, material compatibility, and production consistency.

1. What Is HVAC Duct Protective Film?

HVAC duct protective film is a temporary adhesive-backed film used to protect ductwork and related HVAC components from damage and contamination. The product generally consists of a polyethylene film backing and an acrylic adhesive layer. The polyethylene backing provides flexibility, toughness, and resistance to moisture, while the adhesive enables the film to remain securely attached to the duct surface during handling and installation.

The film is intended for temporary protection rather than permanent bonding. It is applied before or during transport, storage, fabrication, construction, or installation and removed when the protected surface is no longer exposed to significant risk. Depending on the duct design and project requirements, the material may cover flat duct panels, finished duct sections, access panels, external surfaces, flanges, or openings that need temporary closure.

One important use is the temporary sealing of open ductwork. Open ends and unfinished connections can allow construction dust, insulation fibers, packaging debris, and other contaminants to enter the system. Covering these openings with protective film helps reduce the amount of material that must later be removed during duct cleaning. It also supports a more orderly installation process when multiple trades are working in the same area.

The product is available in different thicknesses, widths, roll lengths, colors, and printing configurations. Standard technical information includes thicknesses from 40 to 100 micrometers, widths from 500 to 1,500 millimeters, and roll lengths ranging from approximately 60 meters to extended industrial lengths according to production requirements. Film colors may include blue, clear, green, yellow, and white. Customized printing in up to three colors can be used for logos, handling instructions, product identification, safety reminders, or installation guidance.

2. Why Ductwork Needs Temporary Protection

Ductwork is frequently exposed to demanding conditions before a building’s HVAC system becomes operational. Duct sections may be stacked in warehouses, loaded onto trucks, unloaded at construction sites, moved through unfinished buildings, lifted into position, and connected in areas where other construction activities are still underway. Each stage creates opportunities for damage or contamination.

2.1 Protection During Manufacturing

During fabrication, duct panels may pass through cutting, folding, forming, joining, sealing, and inspection operations. Finished surfaces can be marked by contact with worktables, tools, protective packaging, or adjacent components. Protective film can be applied after a suitable manufacturing stage to preserve the surface while the duct proceeds through additional handling and assembly operations.

For pre-finished, painted, coated, or decorative duct surfaces, temporary protection is especially valuable. Even minor scratches may affect visual quality or expose the underlying substrate to moisture and corrosion. A removable film creates a buffer between the surface and the surrounding manufacturing environment.

2.2 Protection During Transportation and Storage

Transportation creates vibration, friction, impact, and exposure to dust and moisture. Duct sections may shift against packaging materials or against one another if they are not properly secured. A polyethylene protective film helps reduce direct contact between the duct surface and external contaminants. It can also limit the accumulation of dirt during warehouse storage and staging.

Protective film does not replace correct packaging, lifting, and securing procedures. Instead, it works as an additional layer of protection. Proper handling remains essential, but the film can reduce the consequences of normal contact and incidental exposure.

2.3 Protection During Installation

Construction sites contain many potential sources of surface damage, including metal fragments, concrete dust, paint, sealants, tools, ladders, scaffolding, and other building materials. Workers may need to pass duct sections through narrow spaces or install them before ceilings, walls, and insulation are complete. A film barrier helps protect the duct surface during these operations.

Protective film also helps keep visible ductwork clean when the final appearance is important. In exposed ceiling designs, commercial interiors, industrial facilities, retail spaces, and other projects where ducts remain visible, preserving the original surface can reduce final cleaning and touch-up work.

2.4 Temporary Closure of Open Ductwork

Open duct ends should be protected whenever the system will remain incomplete for a period of time. Dust and debris entering the ductwork can be difficult to remove once the system is connected. Film used as a temporary closure can help maintain cleaner internal surfaces before testing and commissioning.

This function can reduce wipe-down time and labor costs. It also contributes to more consistent housekeeping practices across a large project, particularly when duct sections are installed in phases.

HVAC Duct Protective Film

3. Product Construction and Technical Characteristics

3.1 Tough Polyethylene Backing

The backing film is made from polyethylene, a flexible polymer widely used in temporary surface protection applications. Its key role is to resist puncture, tearing, abrasion, and penetration by liquids or dirt under normal handling conditions. A tough backing allows the film to remain continuous even when it encounters moderate friction or contact with construction materials.

Polyethylene is also lightweight and adaptable. It can conform to flat, angled, and slightly irregular duct surfaces without adding significant weight to the protected component. The flexibility of the film helps installers apply it around edges, corners, flanges, and other features when the application area is properly prepared.

3.2 Acrylic Adhesive

The standard adhesive type is acrylic. Acrylic adhesive systems are widely used for temporary protective films because they can provide a balance of adhesion, aging stability, and clean removal. The adhesive must hold the film in place during transportation and construction while avoiding excessive bonding to the duct surface.

Adhesive performance depends on several factors, including substrate type, surface cleanliness, temperature, humidity, application pressure, storage duration, and exposure to sunlight. For this reason, users should evaluate the film on the actual duct material and under representative site conditions before beginning full-scale application.

3.3 Thickness Options

Available thicknesses from approximately 40 to 100 micrometers allow the product to be matched to different risk levels and handling requirements. Thinner films may be suitable for light-duty protection, clean indoor storage, or applications where flexibility and easy handling are priorities. Thicker films may be preferred where the ductwork is exposed to more demanding transportation, storage, or construction conditions.

Thickness alone does not determine performance. Backing formulation, tensile strength, puncture resistance, adhesive design, and manufacturing quality also influence the effectiveness of the finished product. A properly engineered thinner film may outperform a poorly manufactured thicker film in a particular application.

3.4 Elongation and Conformability

The listed elongation is at least 300 percent. High elongation allows the film to stretch and conform around suitable shapes without immediately splitting. This is useful when applying the material to long duct sections or when managing moderate changes in surface geometry.

Stretchability should be controlled during application. Excessive stretching can change the adhesive contact conditions and may make later removal more difficult. The best results are achieved when the film is applied smoothly, with sufficient pressure to eliminate air pockets but without unnecessary tension.

3.5 Width, Roll Length, and Color

Widths from 500 to 1,500 millimeters support both narrow and broad surface coverage. A suitable width can reduce the number of seams required on large duct panels and improve application efficiency. Long industrial rolls also help reduce interruptions during production or installation.

Color selection can support product identification and project organization. Blue, clear, green, yellow, and white films may be selected according to customer preference or application needs. Clear film allows the protected surface and markings to remain visible, while colored film can make protected areas easier to identify from a distance.

3.6 Customized Printing

Printing is available in up to three colors. Customized printing can display a manufacturer’s logo, contractor information, removal instructions, handling warnings, or messages such as “Keep Covered” and “Remove Before Commissioning.” Printed information can make the protective material more than a passive barrier; it can also function as a visual communication tool on a busy construction site.

Printing can help prevent accidental early removal and remind workers that the film is temporary. It may also assist with brand visibility when duct components are delivered to multiple project locations.

4. Main Advantages Over Ordinary Protective Materials

4.1 Stronger Resistance to Puncture and Penetration

Ordinary plastic sheets may provide basic coverage but can shift, tear, or expose sections of the duct surface during handling. An adhesive-backed polyethylene film maintains closer contact with the surface and is less likely to move when correctly applied. Its tough construction helps resist penetration by dirt, liquids, and incidental contact.

This advantage is important because a small opening in loose covering can expose the duct to contamination. A continuous film layer offers more reliable coverage than a sheet that is only placed over the top without adhesion.

4.2 More Efficient Application

Protective film can be unwound, positioned, pressed onto the surface, and cut to length. This is generally faster than installing temporary boards, loose plastic sheeting, or multiple layers of tape. Long rolls can cover substantial areas with fewer joints, improving productivity in both factory and construction environments.

When the film width matches the duct dimensions, installers can achieve consistent coverage with less material waste. The product can also be slit or rewound into sizes suitable for specific equipment and work practices.

4.3 Clean and Controlled Removal

A principal advantage is designed removability. The adhesive is formulated to provide secure temporary attachment while allowing the film to be removed without leaving unwanted adhesive residue under suitable conditions. This reduces the need for solvent cleaning, scraping, or repeated wiping.

Clean removal is particularly important on painted, coated, polished, or visible surfaces. Residue can attract dust, affect appearance, interfere with later sealing or painting, and increase labor requirements. A protective film that removes cleanly helps preserve the expected condition of the ductwork.

4.4 Better Internal Cleanliness

When used to close open duct ends or temporary connections, the film helps reduce the entry of construction debris. This can decrease final wipe-down time and support more efficient commissioning preparation. While protective film is not a substitute for professional HVAC cleaning procedures, it is an effective preventive measure that reduces avoidable contamination.

4.5 Customization for Different Projects

Many generic protective materials are available only in fixed sizes and colors. A manufacturer with integrated film production, adhesive coating, printing, slitting, and packaging capabilities can provide more flexible customization. Customers may request different thicknesses, widths, roll lengths, colors, adhesive formulations, and printed designs.

This flexibility is valuable for duct manufacturers, HVAC contractors, distributors, and original equipment manufacturers that need a product matching their process rather than adapting their process to a standard roll.

4.6 Competitive Total Cost

The purchase price of protective film is only one part of its economic value. A more useful evaluation includes material consumption, application time, removal time, cleaning labor, repair costs, waste disposal, and the risk of rejected or damaged duct sections. A film that performs consistently and removes cleanly may produce a lower total cost than a cheaper material that fails during use.

By reducing the chance of surface damage and contamination, protective film can help protect project schedules. Avoiding rework is often more valuable than saving a small amount on the initial packaging material.

4.7 Compatibility with Multiple Duct Materials

HVAC systems may incorporate galvanized steel, aluminum, fiberglass, composite boards, painted metal, and other surface types. A versatile protective film can be adapted to several substrates through adhesive selection and application testing. This reduces the need for separate products across every part of a project.

Compatibility must always be verified. The correct adhesive depends on the surface finish, coating chemistry, roughness, temperature, and intended protection period. Product trials are recommended before use on sensitive or high-value surfaces.

5. Recommended Application Procedure

5.1 Inspect the Surface

Before applying the film, inspect the duct surface for dust, oil, moisture, loose particles, and sharp burrs. The surface should be sufficiently clean and dry for the adhesive to make uniform contact. If the duct contains sharp edges or protrusions, these areas should be addressed through suitable fabrication or protective handling methods.

5.2 Confirm Compatibility

Apply a small test section to an inconspicuous area or to a representative sample. Leave the film in place for a period that reflects the expected application duration. After removal, check for residue, discoloration, gloss change, coating lift, or other surface effects.

Testing is particularly important for freshly painted surfaces, powder-coated metals, specialty coatings, plastics, composite panels, and surfaces exposed to high heat or direct sunlight.

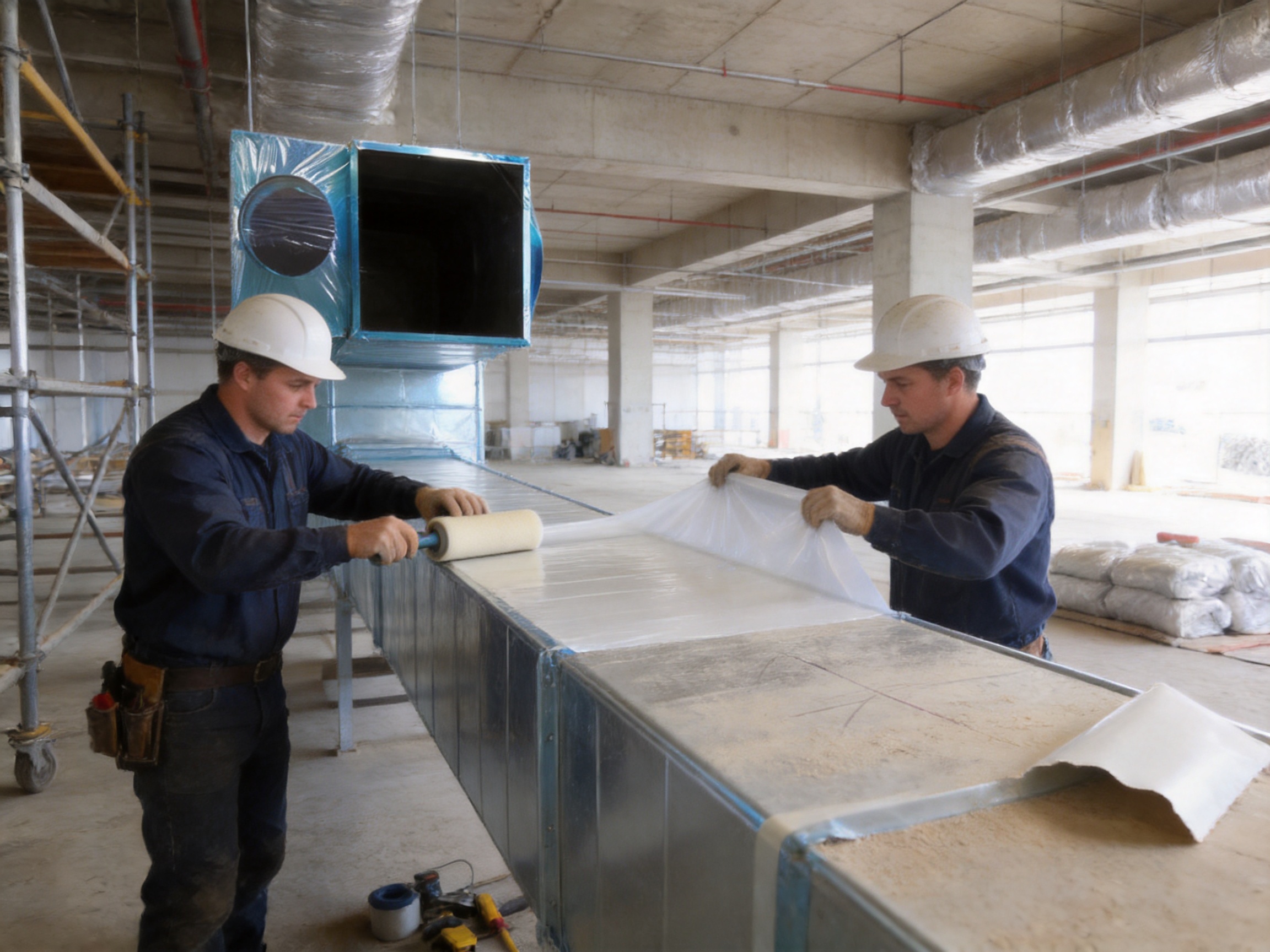

5.3 Apply Without Excessive Tension

Start at one end and gradually press the film onto the duct surface. Use a clean hand, soft roller, or suitable applicator to promote even contact. Avoid trapping large air pockets, wrinkles, or folds. Do not stretch the film more than necessary, as excessive tension may cause shrinkage, edge lift, or difficult removal.

5.4 Seal Openings Carefully

When the film is used as a temporary closure, the edges should overlap the duct opening sufficiently to remain secure. The closure should not obstruct required access, inspection, lifting, or connection work. If additional tape or fastening is needed, it should be selected so that it does not damage the duct surface.

5.5 Mark Protected Sections

Printed film can identify covered areas, but project teams may also use labels or installation records. Clear identification helps workers understand when the film was applied, what it protects, and when it should be removed. This is useful when several trades are working around the same ductwork.

5.6 Remove at the Appropriate Time

Remove the film when the risk of construction damage has sufficiently decreased and before final commissioning, unless the project specification states otherwise. Pull the film back at a steady angle rather than tearing it rapidly. If the material has been exposed to extreme conditions or has remained in place longer than recommended, removal should be tested carefully.

6. Performance Factors That Influence Results

6.1 Surface Energy and Finish

Different substrates accept adhesive differently. Smooth coated metal, galvanized steel, aluminum, fiberglass, and composite materials may have different surface energy and texture. A film that performs well on one surface may require a different adhesive formulation on another.

6.2 Temperature

Temperature affects both adhesion and film flexibility. At low temperatures, the adhesive may require more pressure and time to establish contact. At high temperatures, adhesive flow and bonding strength may increase. Storage and application conditions should therefore follow the product’s technical guidance.

6.3 Moisture and Contamination

Water, condensation, dust, oil, and release agents can interfere with adhesive contact. Applying film to a damp or contaminated surface may lead to premature lifting or inconsistent removal. Good housekeeping and surface preparation are essential for reliable performance.

6.4 Duration of Protection

Protective film is designed for temporary use, but “temporary” can vary from several days to several months depending on project conditions. Longer exposure may increase the effects of ultraviolet light, heat, humidity, weathering, and adhesive aging. The expected duration should be included in product selection and compatibility testing.

6.5 Mechanical Stress

Film cannot prevent damage caused by severe impact, dragging, crushing, or improper lifting. It is a protective layer, not a structural shield. Ductwork should still be handled according to approved procedures, with suitable lifting equipment and packaging.

7. Manufacturing Strengths and Quality Control

The performance of HVAC duct protective film depends heavily on manufacturing consistency. Variations in polyethylene thickness, adhesive coating weight, curing, winding tension, printing quality, and slitting accuracy can affect the final user experience. A capable manufacturer must control the entire process rather than treating the product as simple plastic packaging.

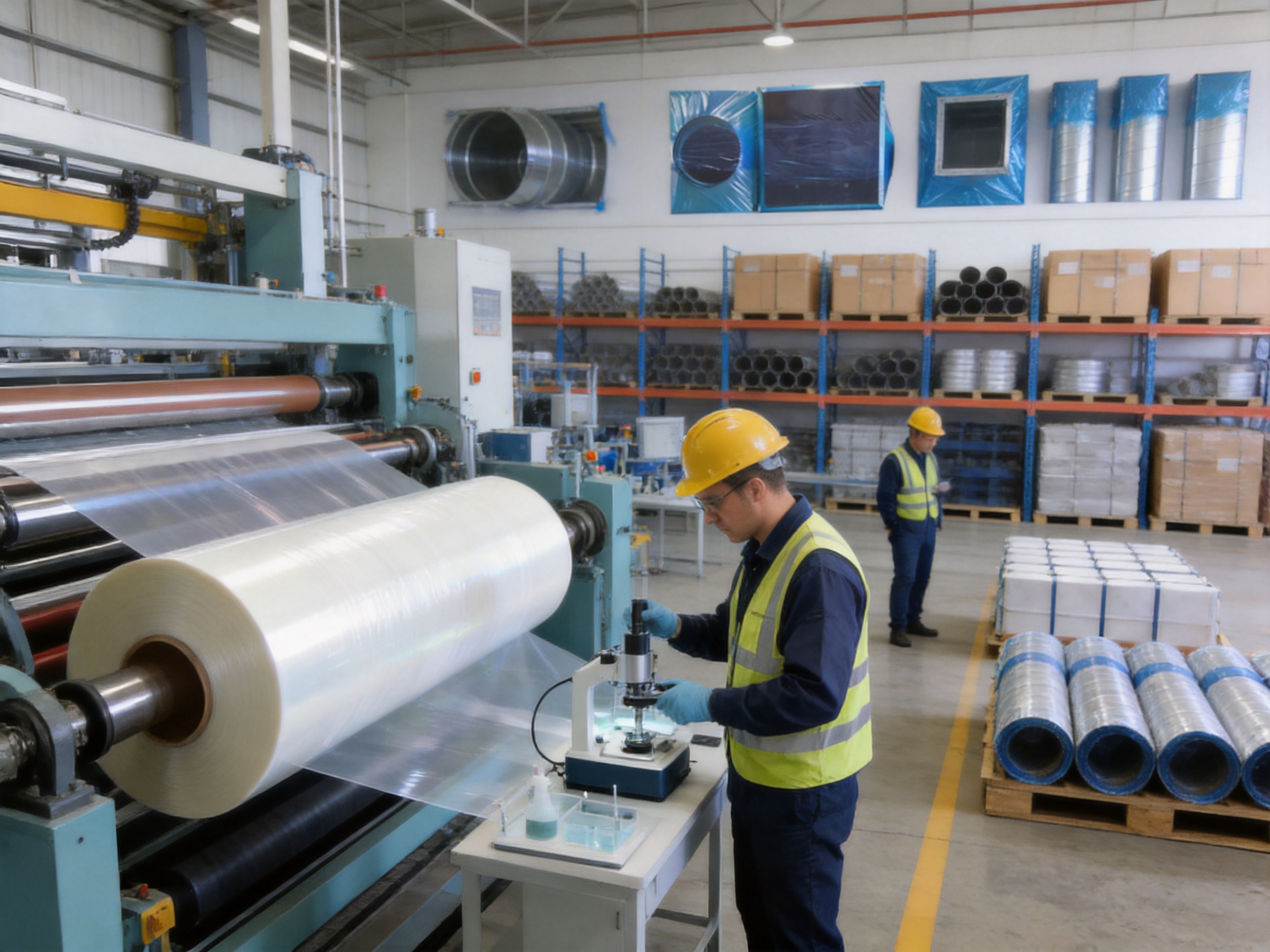

7.1 Integrated Production Process

Wuxi Qida Tape Co., Ltd. operates an integrated production system covering backing film production, adhesive coating, logo printing, rewinding, slitting, inspection, and packaging. Completing these stages within its own factory provides greater control over product consistency and customization.

Integrated manufacturing can also improve communication between technical, production, and quality teams. When a customer requests a change in film thickness, adhesive type, roll size, or printing design, the manufacturer can coordinate the adjustment across the relevant production stages.

7.2 Advanced Equipment

The company has introduced advanced machinery from Germany for protective film production. Modern equipment supports more stable film formation, coating uniformity, winding accuracy, and production efficiency. Equipment capability is especially important for wide rolls, thin films, long lengths, and customized specifications.

Stable coating equipment helps maintain consistent adhesive application across the roll width. Accurate rewinding and slitting reduce telescoping, uneven edges, loose winding, and other problems that can slow down application at the customer’s facility or construction site.

7.3 Research and Development

The company employs experienced technicians and engineers and cooperates with research and development institutes to develop new protective film solutions. This technical approach allows products to be designed around specific substrate and process requirements rather than relying on a single general-purpose formulation.

Development work may address adhesion level, clean removal, temperature resistance, surface compatibility, film color, printing, thickness, and application speed. The company can also develop products according to customer technical data sheets or physical samples.

7.4 Adhesive Selection

Qida Tape offers acrylic water adhesive, acrylic solvent adhesive, and natural rubber adhesive for different industrial requirements. Acrylic water adhesive can be suitable for applications where a water-based system is preferred. Acrylic solvent adhesive may be selected where particular performance characteristics are needed. Natural rubber adhesive can serve applications requiring a different balance of tack and adhesion.

The choice of adhesive should be based on the duct substrate, surface coating, protection duration, temperature, removal requirements, and expected environmental exposure. Providing multiple adhesive options gives customers more opportunity to match the film to their actual application.

7.5 Testing and Inspection

The company maintains a testing laboratory and uses inspection equipment to evaluate product quality. Typical quality considerations for protective film include thickness consistency, width accuracy, roll length, adhesion, tensile behavior, elongation, puncture resistance, print clarity, winding quality, and clean removal.

Quality control is particularly important for industrial rolls because a small variation repeated over a long roll can create substantial waste or labor problems. Consistent inspection helps identify issues before products are shipped.

7.6 Management and Compliance Systems

Qida Tape is certified under ISO 9001 and ISO 14001 management systems. ISO 9001 supports structured quality management and process control, while ISO 14001 focuses on environmental management practices. The company also reports product compliance and testing related to SGS, RoHS, REACH, PFAS, and Proposition 65 requirements.

Customer requirements vary by market and application, so compliance documentation should be confirmed for each order. A manufacturer able to provide organized technical and compliance information can help customers manage internal approval and export documentation more efficiently.

7.7 Production Capacity and Experience

Founded in 1999, the company operates a factory of approximately 20,000 square meters, employs more than 95 experienced staff members, and has an annual production capacity exceeding 12,000 tons. Its products are sold in China and exported to approximately 90 international markets and regions, including Europe, North America, Australia, the Middle East, Japan, and other areas.

Long-term manufacturing experience and international distribution can support more dependable delivery, technical communication, packaging coordination, and after-sales service. These capabilities are important for buyers who require stable supply across repeated projects.

8. Customization Options for HVAC Duct Applications

HVAC duct protective film may be customized in several ways to match the customer’s production line, product dimensions, and installation process. Customization begins with the backing film and extends through adhesive, printing, roll configuration, and packaging.

8.1 Film Thickness

Customers may select a thickness within the available range according to the level of mechanical protection required. The decision should consider duct dimensions, packaging method, transportation distance, storage conditions, and the likelihood of contact with tools or other construction materials.

8.2 Roll Width and Length

Width can be matched to standard duct dimensions or to the working width of an application machine. Longer rolls may improve productivity for manufacturers that apply film in continuous operations. Smaller rolls can be easier to handle on construction sites or in areas with restricted access.

8.3 Adhesive Strength

Adhesion can be adjusted for different surface finishes and protection periods. Very high adhesion may be useful when the film must remain in position during demanding handling, but removability must still be evaluated. The best product is not necessarily the one with the highest adhesion; it is the one with the most appropriate balance of holding power and clean removal.

8.4 Film Color

Color may be selected to support branding, work-zone identification, or visibility. Clear film can preserve visual access to the protected duct surface. Blue, green, yellow, and white films can make covered components easier to distinguish from uncovered components and other packaging materials.

8.5 Printed Instructions and Logos

Printing in up to three colors allows the customer to communicate product or project information directly on the film. Examples include company logos, product names, removal instructions, warnings against cutting the film, or reminders to keep duct openings closed.

8.6 Packaging

Packaging can be designed for export transportation, warehouse storage, distributor handling, or direct use by installation teams. Appropriate packaging protects the rolls from crushing, moisture, contamination, and unnecessary handling damage before they reach the application site.

9. Applications Across the HVAC Supply Chain

9.1 Duct Fabrication Plants

Duct manufacturers can apply protective film after fabrication or surface finishing. The film helps keep completed sections clean while they wait for inspection, packing, and delivery. It can also protect visible surfaces from contact damage during assembly.

9.2 HVAC Equipment Manufacturers

Equipment manufacturers may use the film on air-handling components, external panels, duct connections, access doors, and other surfaces that require temporary protection. Customized printing can identify the equipment or communicate handling requirements.

9.3 Construction Contractors

Mechanical contractors can apply the film during staging and installation. It is useful for protecting duct sections before ceiling closure, preventing debris from entering open connections, and reducing final cleaning work.

9.4 Commercial and Industrial Buildings

Offices, hospitals, factories, warehouses, schools, retail buildings, airports, and data centers may all benefit from clean ductwork protection. Projects with strict indoor air quality procedures or exposed architectural ductwork may place particular value on contamination control and appearance preservation.

9.5 Maintenance and Renovation

During renovation, existing duct systems may be exposed while surrounding ceilings, walls, and equipment are removed or installed. Temporary protective film can help isolate duct surfaces from dust and construction debris. It may also be used during localized repair or replacement work.

10. Storage, Handling, and Safety Recommendations

Protective film should be stored in a clean, dry area away from direct sunlight, excessive heat, moisture, and sharp objects. Rolls should remain in their original packaging until needed. They should be stacked and handled in a way that prevents crushing, deformation, or edge damage.

Before use, operators should confirm the product specification, application surface, expected protection period, and site conditions. Film should not be applied over wet, heavily contaminated, or unstable surfaces. Workers should also ensure that protective film does not cover required labels, inspection points, electrical components, fire safety devices, or access locations.

When removing film from elevated ductwork, workers must follow appropriate fall protection and site safety procedures. Large pieces of removed film should be collected promptly to prevent slip hazards and to support responsible waste handling.

Recycling or disposal options depend on the film composition, adhesive system, local regulations, and contamination level. Customers with environmental targets should discuss packaging, material composition, and waste management requirements with the supplier before ordering.

11. How to Select the Right Product

Purchasers should begin by identifying the duct material and surface finish. A galvanized metal surface, painted panel, aluminum section, fiberglass duct board, and composite material may require different adhesive behavior. The desired protection period and expected environmental conditions should then be considered.

Next, buyers should define the mechanical risks. Light indoor storage may require less protection than long-distance transportation or active construction-site installation. If the film will be used to cover open ductwork, the closure method and required edge coverage should also be established.

Roll dimensions are another important consideration. The correct width can reduce overlapping and waste, while the correct roll length can improve handling efficiency. Customers should also decide whether color coding or printed instructions would improve project control.

Finally, buyers should evaluate the manufacturer’s ability to provide stable quality, technical support, customization, testing, documentation, and delivery. A supplier with in-house film production, adhesive coating, printing, slitting, inspection, and packaging can often respond more efficiently than a trading company that relies entirely on outside processes.

12. Why Choose an Experienced Protective Film Manufacturer?

Protective film performance is closely connected to process control. The backing film must have consistent thickness and mechanical strength. The adhesive must be coated uniformly. The roll must be wound without defects. Printing must remain clear and correctly positioned. Packaging must protect the product until use. A weakness in any one stage may reduce the value of the final film.

An experienced manufacturer can use historical production data, customer feedback, testing results, and technical knowledge to improve product design. It can also help customers avoid common problems such as excessive residue, premature lifting, inconsistent adhesion, poor roll formation, and difficult application.

Wuxi Qida Tape Co., Ltd. combines manufacturing experience, technical development, multiple adhesive choices, integrated processing, quality systems, international market experience, and customization capability. These strengths make it suitable for customers seeking HVAC duct protective film as well as broader surface protection solutions for stainless steel, aluminum, pre-coated metals, plastics, ceramic, carpets, decorative laminates, glass, and other materials.

The company’s own production processes cover backing film production, adhesive coating, logo printing, rewinding, slitting, and packaging. This integrated structure supports better control of lead times, specifications, and quality. Its engineering and technical teams can work from customer samples or technical data sheets, helping develop a product for a specific duct surface or application condition.

13. Quality and Project Value

The strongest reason to use HVAC duct protective film is risk reduction. Ductwork that arrives at the construction site in good condition can be installed more efficiently. Duct openings that remain covered are less likely to require extensive cleaning. Visible surfaces that remain free from scratches and marks are less likely to require repairs or replacement.

These benefits can affect several project objectives at the same time: schedule control, labor efficiency, material preservation, visual quality, and indoor environmental management. The film is a relatively simple product, but its correct use can support a more disciplined and cost-effective workflow.

Protective film should be included as part of a broader protection plan. Good packaging, careful transportation, correct lifting, clean storage, appropriate installation, and timely removal all remain necessary. When these practices are combined with a properly selected film, HVAC ductwork receives consistent protection from the factory to the finished building.

14. Frequently Asked Questions

Q1: What is HVAC duct protective film used for?

It is used to protect duct surfaces from scratches, dirt, liquids, abrasions, and other construction-related damage during manufacturing, transportation, storage, installation, and maintenance. It can also provide temporary closures over open ductwork to reduce dust and debris entry.

Q2: What material is the backing film made from?

The backing is made from polyethylene. This material provides flexibility, toughness, moisture resistance, and good resistance to puncture and penetration under normal handling conditions.

Q3: What adhesive is used?

The standard adhesive type listed for this product is acrylic. Depending on the customer’s application, different adhesive systems may be considered, including acrylic water adhesive, acrylic solvent adhesive, and natural rubber adhesive.

Q4: Will the film leave residue after removal?

The adhesive is specially formulated for easy application and removal without leaving residue when the film is used on a compatible surface under suitable conditions. A small-scale compatibility test is recommended before full application, especially on painted, coated, plastic, or sensitive surfaces.

Q5: How thick is the film?

Available thicknesses range from approximately 40 to 100 micrometers. The appropriate thickness depends on the required mechanical protection, handling conditions, transportation method, and protection duration.

Q6: What widths and roll lengths are available?

Standard widths range from approximately 500 to 1,500 millimeters. Roll lengths can range from about 60 meters to extended industrial lengths according to customer requirements and production specifications.

Q7: Can the film be printed?

Yes. Printing in up to three colors is available. Customers may print logos, product identification, handling instructions, removal reminders, or other project-specific information.

Q8: What colors are available?

Common color options include blue, clear, green, yellow, and white. Custom colors may be discussed according to order quantity, printing requirements, and production feasibility.

Q9: Can it be applied to galvanized steel and aluminum ductwork?

It can be suitable for galvanized steel and aluminum, but compatibility should be confirmed for the exact surface finish and application conditions. A trial application is recommended before large-scale use.

Q10: Can it protect fiberglass or composite duct materials?

The film may be suitable for fiberglass and composite materials, depending on surface texture, coating, porosity, and adhesive compatibility. The supplier should evaluate the substrate before confirming the final specification.

Q11: Is the film a replacement for duct cleaning?

No. Protective film is a preventive protection product that helps reduce contamination. It does not replace cleaning, inspection, testing, or commissioning procedures required by the project specification and applicable standards.

Q12: How should the film be removed?

Remove it steadily, preferably by pulling it back at a controlled angle. Avoid tearing it into small pieces. If the film has been exposed to unusual temperatures, sunlight, moisture, or an extended protection period, test a small area first.

Q13: Can the film be used outdoors?

Outdoor use depends on the specific film, adhesive, exposure duration, ultraviolet conditions, and weather. Outdoor applications should be discussed with the manufacturer and validated through testing before use.

Q14: What information should be provided when requesting a quotation?

Useful information includes duct substrate, surface finish, film thickness, width, roll length, color, adhesive preference, expected protection period, application temperature, printing requirements, packaging needs, and estimated annual or project volume.

Q15: What makes an integrated manufacturer valuable?

An integrated manufacturer controls more production stages, including film production, adhesive coating, printing, rewinding, slitting, inspection, and packaging. This can improve specification control, customization, communication, quality consistency, and delivery coordination.

15. Conclusion

HVAC duct protective film is an effective way to preserve ductwork during the many stages between fabrication and commissioning. Its polyethylene backing resists puncture, dirt, and liquid penetration, while its acrylic adhesive provides temporary attachment and clean removal under suitable conditions. The material can protect external surfaces, support temporary closure of open ductwork, reduce cleaning work, and help control project costs.

Available thicknesses from 40 to 100 micrometers, widths from 500 to 1,500 millimeters, multiple colors, long roll lengths, and printing of up to three colors make the product adaptable to different HVAC applications. More importantly, product performance can be matched to the customer’s substrate, handling conditions, protection period, and installation process through technical consultation and testing.

Wuxi Qida Tape Co., Ltd. strengthens this product offering through integrated manufacturing, advanced equipment, experienced engineers, multiple adhesive options, in-house testing, customization capability, ISO management systems, and international supply experience. Its ability to produce, coat, print, rewind, slit, inspect, and package protective film within its own factory supports reliable quality and responsive service.

For HVAC manufacturers, contractors, distributors, and construction companies, selecting the right protective film is an investment in surface quality, cleanliness, labor efficiency, and schedule protection. When correctly specified and applied, HVAC duct protective film helps ensure that ductwork reaches final installation in the condition required for a professional, efficient, and reliable HVAC project.

References

1. Wuxi Qida Tape Co., Ltd. Product Information: HVAC Duct Protective Film. Technical product description and specification data.

2. Wuxi Qida Tape Co., Ltd. Corporate Information. Manufacturing capabilities, adhesive options, quality systems, and production services.

3. ISO 9001. Quality Management Systems—Requirements.

4. ISO 14001. Environmental Management Systems—Requirements with Guidance for Use.

5. General principles of temporary surface protection for metal, plastic, coated, and composite substrates.

6. General HVAC ductwork handling, cleanliness, installation, and commissioning practices.

Product: HVAC Duct Protective Film
